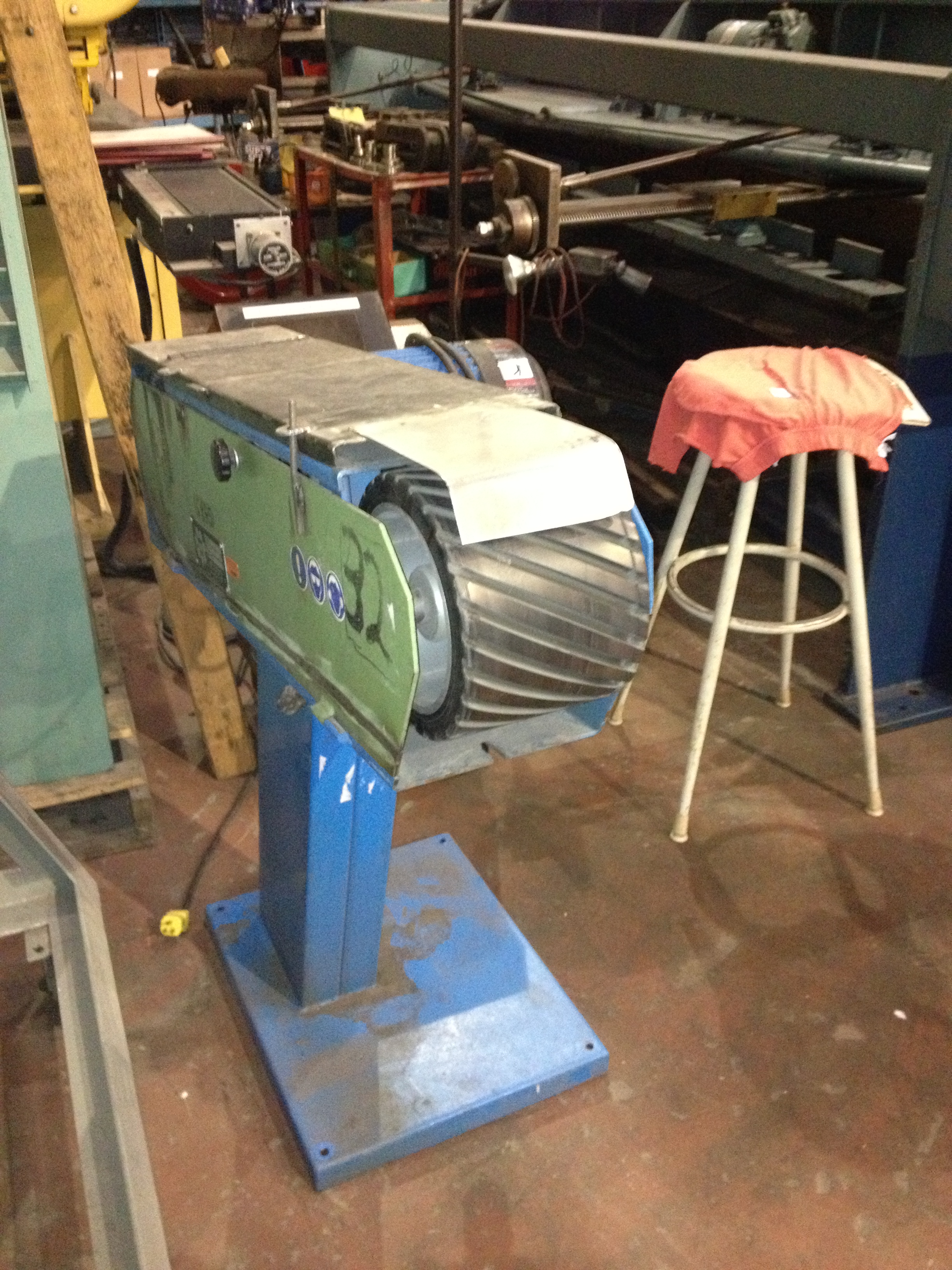

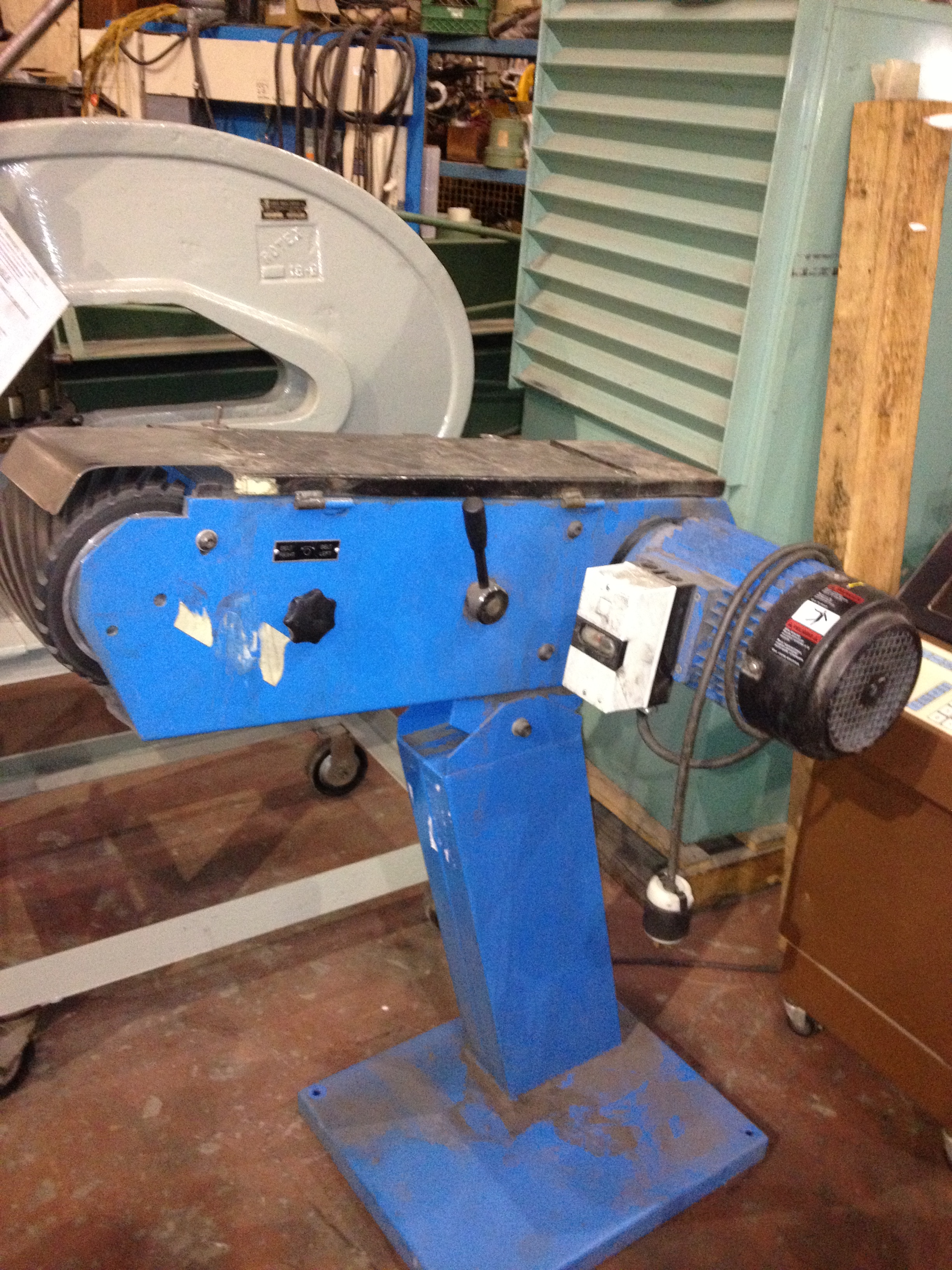

MODEL. . . . . . . . . . . . . . . . . . . . . . .150
SERIAL. . . . . . . . . . . . . . . . . . . . . . .120586
CONTACT WHEEL SIZE . . . . . . . .7.87″ X 5.9″
GRINDING PLANE. . . . . . . . . . . . .20.8″
GRINDING BELT SIZE. . . . . . . . . .5.9″ X 78.7″
BELT SPEED. . . . . . . . . . . . . . . . . . .803 IPM
ADJ. WORKING HEIGHT . . . . . . .18.7″ TO 48.8″
GRINDING WHEEL MOTOR. . . . .3 KW (4 HP)
ELECTRICS. . . . . . . . . . . . . . . . . . . .575/60/3 VOLT
WEIGHT . . . . . . . . . . . . . . . . . . . . . .231 LBS
DIMENSIONS . . . . . . . . . . . . . . . . . .39″ LX 22″ W X 40″ H
C/W:
– ELECTRONIC MOTOR/BRAKE SYSTEM;
– SELF-ADJUSTING BELT TENSIONER;
– ADJUSTABLE WORKING HEIGHT;
– ON/OFF SWITCH;
