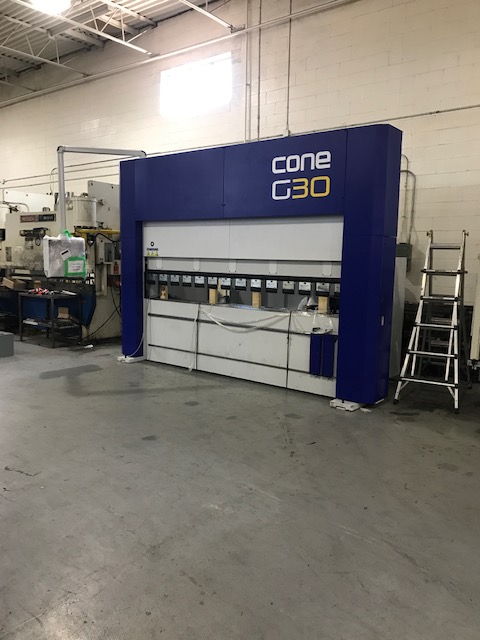

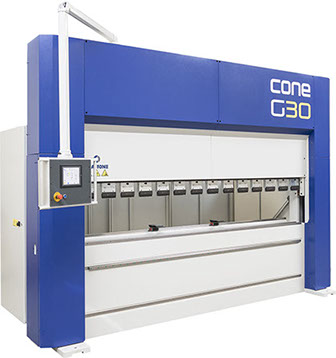

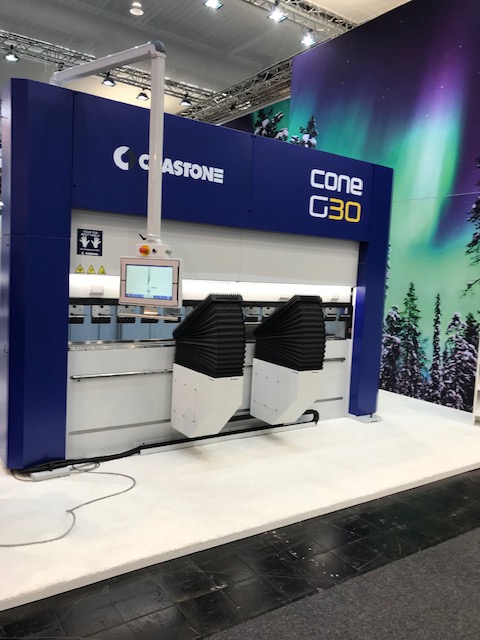

135 TON x 10 FT COASTONE MODEL G30 CNC 7 AXIS SERVO-DRIVE BALL-SCREW ELECTRIC PRESS BRAKE - NEW-IN-STOCK

CAPACITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 TONS
BENDING LENGTH . . . . . . . . . . . . . . . . . . . . . . .120.5″
DISTANCE BETWEEN HOUSINGS . . . . . . . . . .125.9″
STROKE LENGTH. . . . . . . . . . . . . . . . . . . . . . . . .11.02″
MAXIMUM OPEN HEIGHT. . . . . . . . . . . . . . . . .23.6″
CLOSED HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . .12.6″
THROAT DEPTH. . . . . . . . . . . . . . . . . . . . . . . . . .O FRAME STYLE
RAM APPROACH SPEED. . . . . . . . . . . . . . . . . . .236 IPM
RAM PRESSING SPEED . . . . . . . . . . . . . . . . . . . .10 – 47 IPM
RAM REPEAT IN PRESSING SPEED. . . . . . . . . .+/-0.000079″
RAM RETURN SPEED. . . . . . . . . . . . . . . . . . . . . .236 IPM
BACK GAUGE (X) TRAVEL. . . . . . . . . . . . . . . . . .23.6″/29.5″
BACK GAUGE (X) SPEED . . . . . . . . . . . . . . . . . . .1,181 IPM
BACK GAUGE (X) ACCURACY . . . . . . . . . . . . . . .+/-0.00098″
BACK GAUGE (R) HEIGHT MOVEMENT. . . . . .7.87″
BACK GAUGE (R) HEIGHT SPEED . . . . . . . . . . 236 IPM
BACK GAUGE (Z1 & Z2) TRAVEL. . . . . . . . . . . . 4.7″ – 116.5″ WIDTH
BACK GAUGE (Z1 & Z2) SPEEDS . . . . . . . . . . . . 5,905 IPM
BACK GAUGE (Z1 & Z2) ACCURACY . . . . . . . . . +/- .02″
BACK GAUGE (DELTA X) MOVEMENT. . . . . . . +/- 2″
BED TOP WIDTH. . . . . . . . . . . . . . . . . . . . . . . . . . 2.75″
BED WORKING HEIGHT. . . . . . . . . . . . . . . . . . . .35.4″
MOTORS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 X 5.9 HP
ELECTRICS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .575/60/3 VOLT
FLOOR SPACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158″ X 70″ x 112″ H
APPROX. WEIGHT . . . . . . . . . . . . . . . . . . . . . . . . .16,600 LBS
C/W:
– OMRON 2D CNC COLOUR TOUCH SCREEN CONTROL;
– WILA/AMADA/NORTH AMERICAN TOP TOOL HOLDERS;

– CNC CROWNING TO THE RAM BALL SCREWS INCLUDED;
– UNLIMITED TOOL STORAGE IN CNC PROGRAM;
– MATERIAL LIBRARY IN CNC PROGRAM;
– AUTOMATIC TONNAGE CALCULATIONS WITH MANUAL OVERRIDE;
– UNLIMITED MEMORY STORAGE OF PROGRAMS;
– PROGRAMMABLE RAM APPROACH SPEED, PRESSING SPEED,
RETURN SPEED, RAM DWELL TIME, STROKE LENGTH, BACK
GAUGE RETRACT, BUMP FORM, INCH/METRIC, PARTS COUNTER,
10 NUMBERED ALPHA-NUMERIC DIE REFERENCE;
– OPTIONAL SOFTWARE FOR UPLOADING OR DOWNLOADING PROGRAMS;
– LASER GUARDS ALLOW OPERATOR TO WORK CLOSE TO DIES FOR BOX BENDING;
– SIDE SAFETY FENCES, REAR SAFETY GATE, CLASS 4 SAFETY SYSTEM,

SAFETY RELAY IN PANEL;
– HYDRO APPROVAL FOR USE IN CANADA;
– READY FOR PSR APPROVAL IN CANADA;

– BUILT IN FINLAND, THESE BRAKES ARE SERVO-ELECTRIC,

DIRECT BALL SCREW DRIVEN WITH A USER FRIENDLY

COLOUR TOUCH SCREEN PROGRAMMING SYSTEM FOR FAST

AND EASY SET-UPS AND ARE PERFECT FOR SHORT OR LONG

RUNS AND QUICK PRODUCTION REQUIREMENTS.

– CONE PRESS BRAKES USE NO HYDRAULIC OIL, SAVE UP TO 50%

ON ELECTRICAL COSTS AND ELIMINATE PUMPS, VALVES,

TANKS, DRIPPING OIL AND OIL HEAT PROBLEMS.

– FASTER CYCLE TIMES, VIRTUALLY NO MAINTENANCE COSTS

AND CONSISTENT ACCURATE BENDING IS WHAT EVERY END

USER REQUIRES TO BE COMPETITIVE THESE DAYS.
