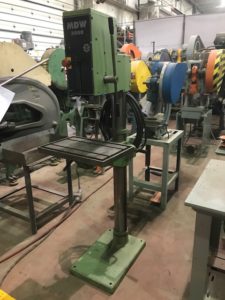

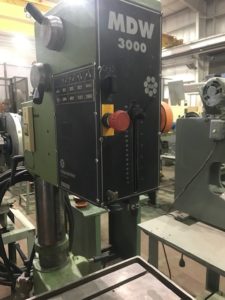

MODEL. . . . . . . . . . . . . . . . . . . . . . . . 3000
SERIAL. . . . . . . . . . . . . . . . . . . . . . . . 93134
SPINDLE TAPER. . . . . . . . . . . . . . . . # 3 MT
SPINDLE TRAVEL . . . . . . . . . . . . . . 6″
CAPACITY – STEEL. . . . . . . . . . . . . . 1″
– CAST IRON. . . . . . . . . . 1-1/4″
COLUMN DIAMETER. . . . . . . . . . . . 4″
THROAT DEPTH. . . . . . . . . . . . . . . . 12-1/4″
MAX. DIST. SPINDLE/TABLE. . . . . 34″
SPINDLE SPEEDS (8). . . . . . . . . . . . 120 – 2,880 RPM
TWO SPEED MOTOR . . . . . . . . . . . . 1.3 & 1.6 HP
ELECTRICS . . . . . . . . . . . . . . . . . . . . 550/60/3 VOLT
DIMENSIONS . . . . . . . . . . . . . . . . . . 22″ LR X 26″ FB X 70″ H
APPROX. WEIGHT. . . . . . . . . . . . . . 600 LBS
C/W:
– HIGH/LOW SPEEDS AND REVERSABLE SPINDLE;
– MANUAL CRANK FOR HEAD HEIGHT;
– MANUAL CRANK FOR TABLE HEIGHT;
– T-SLOTTED TABLE WITH DEEP COOLANT TROUGH;
– TABLE SWIVELS WITH LOCK;
