IRM 2 HIGH X 6″ WIDE FLATTENING ROLLING MILL

MODEL. . . . . . . . . . . . . . . . . . . . . .2 HIGH
SERIAL. . . . . . . . . . . . . . . . . . . . . .RI 02860
NEW . . . . . . . . . . . . . . . . . . . . . . . .10-11-00
UNCOILER ON FEED-IN SIDE . .6″ WIDE X 8″ OD
GUIDE ROLL ON ENTRY END. . .5″ W X 3″ OD
2 HIGH MILL ROLLS . . . . . . . . . .6″ W X 4″ OD
GUIDE ROLL ON EXIT END. . . . .5″ W X 3″ OD
RECOILER ON EXIT END. . . . . . .6″ W X 8″ OD
DIMENSIONS . . . . . . . . . . . . . . . . .48″ W X 56″ LX 72″ H
APPROX. WEIGHT. . . . . . . . . . . . .2,850 LBS
MOTOR. . . . . . . . . . . . . . . . . . . . . . .7-1/2 HP DC
ELECTRICS . . . . . . . . . . . . . . . . . . .230/60/3 VOLT
C/W:

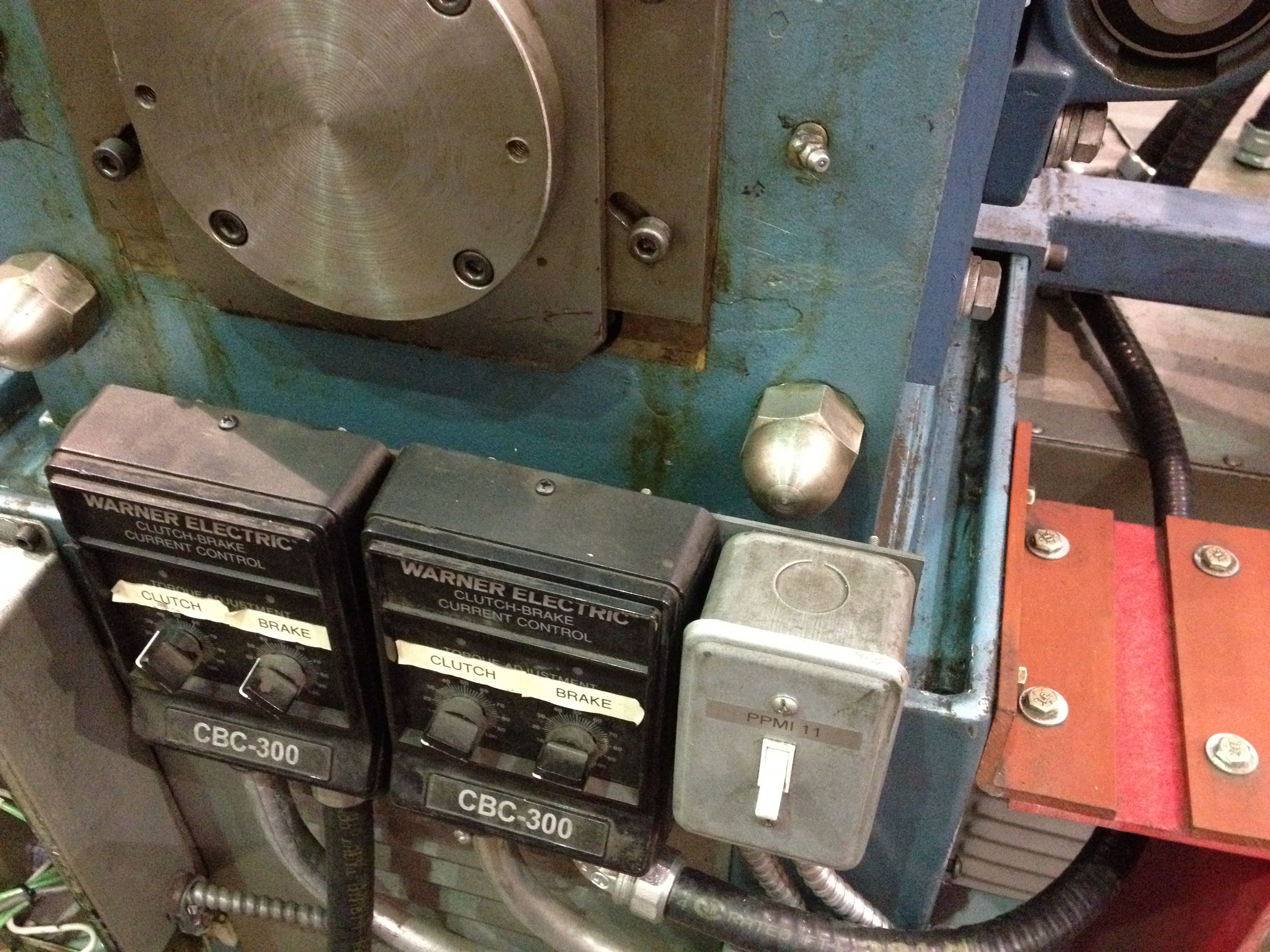

– VARI-SPEED CONTROLS TO UNCOILER CLUTCH & BRAKE;
– VARI-SPEED CONTROLS TO RECOILER CLUTCH & BRAKE;
– MANUALLY ADJUSTABLE SPEED ADJUSTMENT TO MILL ROLLS;
– FORWARD & REVERSE BUTTONS;
– MANUALLY ADJUSTABLE GUIDE PLATES ON EXIT END OF MILL;
– BURTON INDUSTRIES SPEED-STAT-III CONTROL UNIT;
– TWO EMERGENCY MUSHROOM STOPS;
– BOX OF SPARE SMALL DIAMETER ROLLS;
