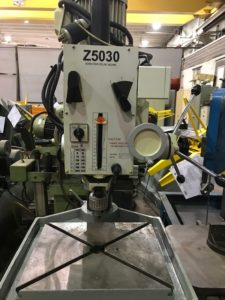

MODEL. . . . . . . . . . . . . . . . . . . . . . . . Z5030
SERIAL. . . . . . . . . . . . . . . . . . . . . . . . 0805203
SPINDLE TAPER. . . . . . . . . . . . . . . . # 3 MT
SPINDLE TRAVEL. . . . . . . . . . . . . . . 5-1/8″
DRILLING CAPACITY. . . . . . . . . . . . 1-1/8″
COLUMN DIAMETER . . . . . . . . . . . . 4-1/2″
THROAT DEPTH . . . . . . . . . . . . . . . . 11″W
WORKING SURFACE OF TABLE. . . 17-1/4″ X 14-1/2″
MAX. DISTANCE SPINDLE/BASE. . 44″
MAX. DISTANCE SPINDLE/TABLE. 36″
SPINDLE SPEEDS (6) . . . . . . . . . . . . 90 – 1,970 RPM
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . 1-1/8 HP
ELECTRICS. . . . . . . . . . . . . . . . . . . . . 575/60/3 VOLT
DIMENSIONS . . . . . . . . . . . . . . . . . . . 24″ X 29″ X 75″ H
APPROX. WEIGHT. . . . . . . . . . . . . . . 640 LBS
C/W:
– FINE DOWNFEED HANDLE FOR ACCURATE DRILLING;
– MANUAL CRANK FOR HEAD HEIGHT;
– MANUAL CRFANK FOR TABLE HEIGHT;
– T-SLOTTED TABLE WITH DEEP COOLANT TROUGH;
– TABLE SWIVELS WITH LOCKS;
– FORWARD & REVERSE SWITCH;
– 1/2″ DRILL CHUCK AND ARBOR;
