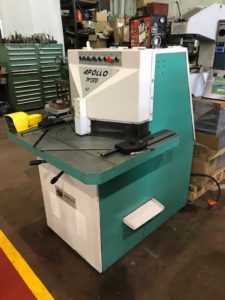

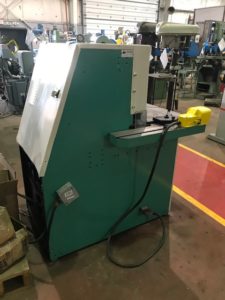

MODEL. . . . . . . . . . . . . . . . . . . . . . .TV 250/6
SERIAL. . . . . . . . . . . . . . . . . . . . . . .50684
VARIABLE CUTTING ANGLES. . .30 – 130 DEGRESS
CAPACITY – AT 60 DEGREES . . . .1/4″ MILD STEEL
– AT 60 DEGREES . . . .5/32″ STAINLESS STEEL
– AT 30 DEGREES . . . .5/32″ MILD STEEL
– AT 30 DEGREES . . . .11 GAUGE STAINLESS STEEL
BLADE LENGTHS . . . . . . . . . . . . . .9.85″ X9.85″
CUTTING SPEED . . . . . . . . . . . . . . .55 SPM
HOLD DOWN PRESSURE. . . . . . . .29 PSI
OIL TANK CAPACITY. . . . . . . . . . . .9 GALLONS
WORKING TABLE HEIGHT . . . . . .35″
TABLE DIMENSIONS. . . . . . . . . . . .39.4″ LR X 25″ FB
MOTOR. . . . . . . . . . . . . . . . . . . . . . . .5 HP
ELECTRICS . . . . . . . . . . . . . . . . . . . .575/60/3 VOLT
APPROX. WEIGHT. . . . . . . . . . . . . .2,420LBS
APPROX DIMENSIONS. . . . . . . . . .50″ X 39″ X 56″
C/W:
– POWER ADJUSTMENT TO BLADES;
– MEASURED SCALES FOR BLADE ANGLE REFERENCE;
– TWO SQUARE GUIDES WITH REFERENCE HOLES;
– HAND CONTROLS & ELECTRIC FOOT PEDAL;
