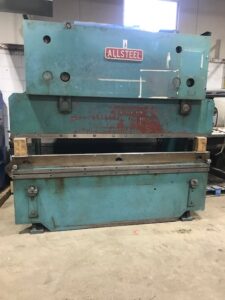

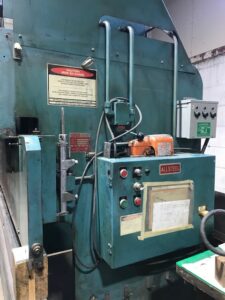

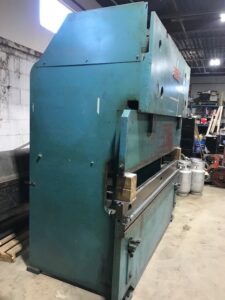

MODEL. . . . . . . . . . . . . . . . . . . . . . . . .45-8
SERIAL. . . . . . . . . . . . . . . . . . . . . . . . .809
CAPACITY . . . . . . . . . . . . . . . . . . . . . .8 FT X 14 GAUGE
. . . . . . . . . . . . . . . . . . . . . .4 FT X 3/16″
BENDING LENGTH . . . . . . . . . . . . . .96″
DISTANCE BETWEEN UPRIGHTS. .78″
THROAT DEPTH. . . . . . . . . . . . . . . . .8″
VARIABLE STROKE. . . . . . . . . . . . . .0″ TO 6″
OPEN HEIGHT . . . . . . . . . . . . . . . . . .15″
HYDRAULIC OIL CAPACITY . . . . . .APPROX. 30 GAL
MOTOR . . . . . . . . . . . . . . . . . . . . . . . .15 HP
ELECTRICS. . . . . . . . . . . . . . . . . . . . .550/3/60 VOLT
APPROX. WEIGHT . . . . . . . . . . . . . .8,500 LBS
FLOOR SPACE. . . . . . . . . . . . . . . . . .96″ L X 46″ W X 94″ H
C/W:
– ELECTRIC FOOT PEDAL;
– BED TILT ADJUSTMENT;
– INFINITELY VARIABLE PRESSING SPEED;
– OFF/SET/JOG/RUN/SINGLE MODE SELECTOR SWITCH;
– STANDARD BOTTOM DIE RAIL & CENTERING BLOCKS;
– PUSH BUTTON RAM RETURN FROM ANY POSITION OF STROKE;
– LIMIT SWITCHES WITH MICROMETER BOTTOMING ADJUSTMENT;
