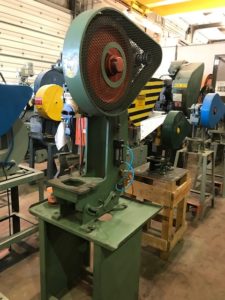

MODEL. . . . . . . . . . . . . . . . . . . . . . .6SP
SERIAL. . . . . . . . . . . . . . . . . . . . . . .546
CAPACITY . . . . . . . . . . . . . . . . . . . .6 TON
STROKE. . . . . . . . . . . . . . . . . . . . . .1″
RAM ADJUSTMENT . . . . . . . . . . .2″
SHUT HEIGHT (SDAU). . . . . . . . .14″ OVER BED
DISTANCE BED TO GIBS . . . . . . .15″
PUNCH HOLE IN RAM . . . . . . . . .1-1/2″ OD
BED AREA. . . . . . . . . . . . . . . . . . . .7″ FB X 10-3/4″ W
THROAT DEPTH . . . . . . . . . . . . . .8-1/2″
SPEED. . . . . . . . . . . . . . . . . . . . . . .155 SPM
MOTOR. . . . . . . . . . . . . . . . . . . . . .1/2 HP @ 1,165 RPM
ELECTRICS . . . . . . . . . . . . . . . . . .110/60/1 VOLT
FLOOR SPACE. . . . . . . . . . . . . . . .28″ W X 26″ DEEP X 73″ H
APPROX. WEIGHT . . . . . . . . . . . .475 LBS
C/W:
– MOUNTED ON STEEL BENCH;
– AIR ACTUATED MECHANICAL CLUTCH;
– ELECTRIC FOOT PEDAL;
– SINGLE STROKE MECHANISM ON RAM;
– ON/OFF SWITCH;
– COUNTER ON RAM;
– FILTER, LUB, REG;
