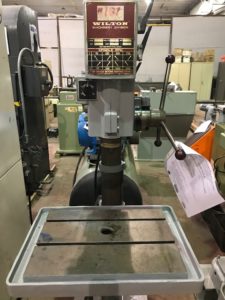

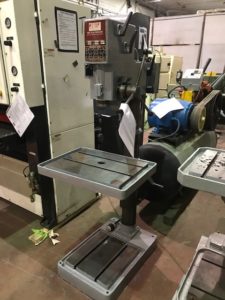

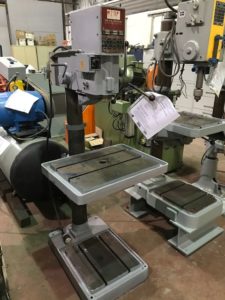

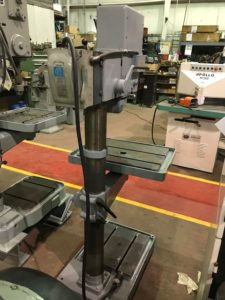

MODEL. . . . . . . . . . . . . . . . . . . . . . . . . . .24203
SERIAL. . . . . . . . . . . . . . . . . . . . . . . . . . .51220
SPINDLE TAPER. . . . . . . . . . . . . . . . . . .# 3 MT
SPINDLE TRAVEL. . . . . . . . . . . . . . . . . .6″
DRILL CAPACITY – STEEL. . . . . . . . . . .1″
– CAST IRON. . . . . . .1-1/4″
COLUMN DIAMETER . . . . . . . . . . . . . . .4-5/16″
THROAT DEPTH . . . . . . . . . . . . . . . . . . .12.6″
TABLE WORKING SURFACE. . . . . . . . .25″ X 18″
MAX. DISTANCE SPINDLE/BASE. . . . .43-5/16″
MAX. DISTANCE SPINDLE/TABLE. . . .30-11/16″
SPINDLE SPEEDS (8). . . . . . . . . . . . . . . .85 – 1,460 RPM
MOTOR – 2 SPEED. . . . . . . . . . . . . . . . . . .1.3 & 1.6 HP
ELECTRICS. . . . . . . . . . . . . . . . . . . . . . . . .220/60/3 VOLT
DIMENSIONS. . . . . . . . . . . . . . . . . . . . . . .19-1/4″ LR X 28-1/4″ FB X 69-3/4″ H
APPROX. WEIGHT . . . . . . . . . . . . . . . . . .600 LBS
C/W:
– MANUAL CRANK FOR HEAD HEIGHT;
-MANUAL CRANK FOR TABLE HEIGHT;
– T-SLOTTED TABLE WITH DEEP COOLANT TROUGH;
– TABLE SWIVELS WITH LOCK;
