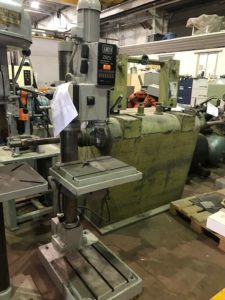

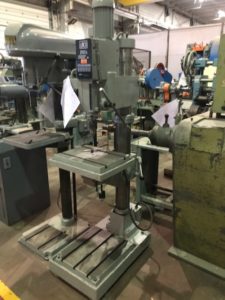

MODEL . . . . . . . . . . . . . . . . . . . . .Z5025A
SERIAL . . . . . . . . . . . . . . . . . . . . .Z10122
SPINDLE TAPER . . . . . . . . . . . . .# 3 MT
SPINDLE TRAVEL. . . . . . . . . . . .6″
DRILLING CAPACITY. . . . . . . . .1″ IN STEEL
COLUMN DIAMETER . . . . . . . . .4-1/2″
THROAT DEPTH . . . . . . . . . . . . .12-3/8″
WORKING TABLE SURFACE. . .16-3/8″ X 12-3/8″
DISTANCE SPINDLE/BASE . . . .47″
DISTANCE SPINDLE/TABLE. . .26″
SPINDLE SPEEDS (8). . . . . . . . .120 TO 3,480 RPM
MOTOR. . . . . . . . . . . . . . . . . . . . .3/4 HP & 1 HP
ELECTRICS . . . . . . . . . . . . . . . . .600/60/3 VOLT
DIMENSIONS . . . . . . . . . . . . . . .19″ LR X 28″ F X 66″ H
APPROX. WEIGHT. . . . . . . . . . .540 LBS
C/W:

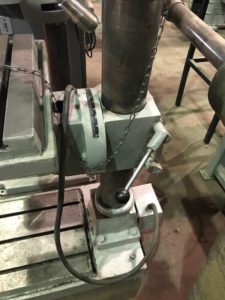

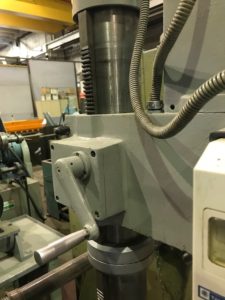

– MANUAL CRANK FOR HEAD HEIGHT:
– MANUAL CRANK FOR TALE HEIGHT;
– T-SLOTTED TABLE WITH DEEP COOLANT TROUGH;
– TABLE SWIVELS AND ANGLES WITH LOCKS;
– FORWARD & REVERSE SWITCH;
